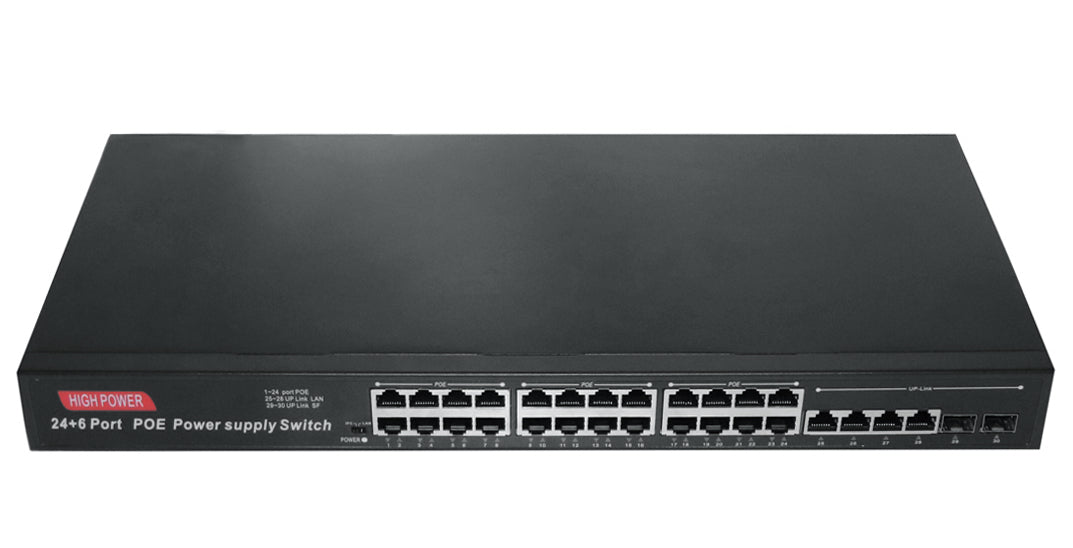

24 Ports POE Switch Partizan PSW-24 with automatical POE devices detection and LED indication. Partizan PSW-24 POE Switch is compatible with 1U Rack-Mount Installation.
Download Datasheet Partizan PSW-24
Main Features
Interface:
24 PoE 4 Uplink 10/100/1000M ports 2 SFP port switch
Network Protocols:
IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af/at
РОЕ Support:
24*10/100M
РОЕ Standard:
IEEE 802.3af/at
Dimension:
440x200x45 mm
Weight:
2820 g
Additional features:
— 24 PoE 4 Uplink 10/100/1000M ports 2 SFP port switch
— Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward
— LED indicators for monitoring power, link, activity and speed
— Compatible with 1U Rack-mount installation
— Circuit protection prevents power interference between ports
— Detects PoE power device automatically
