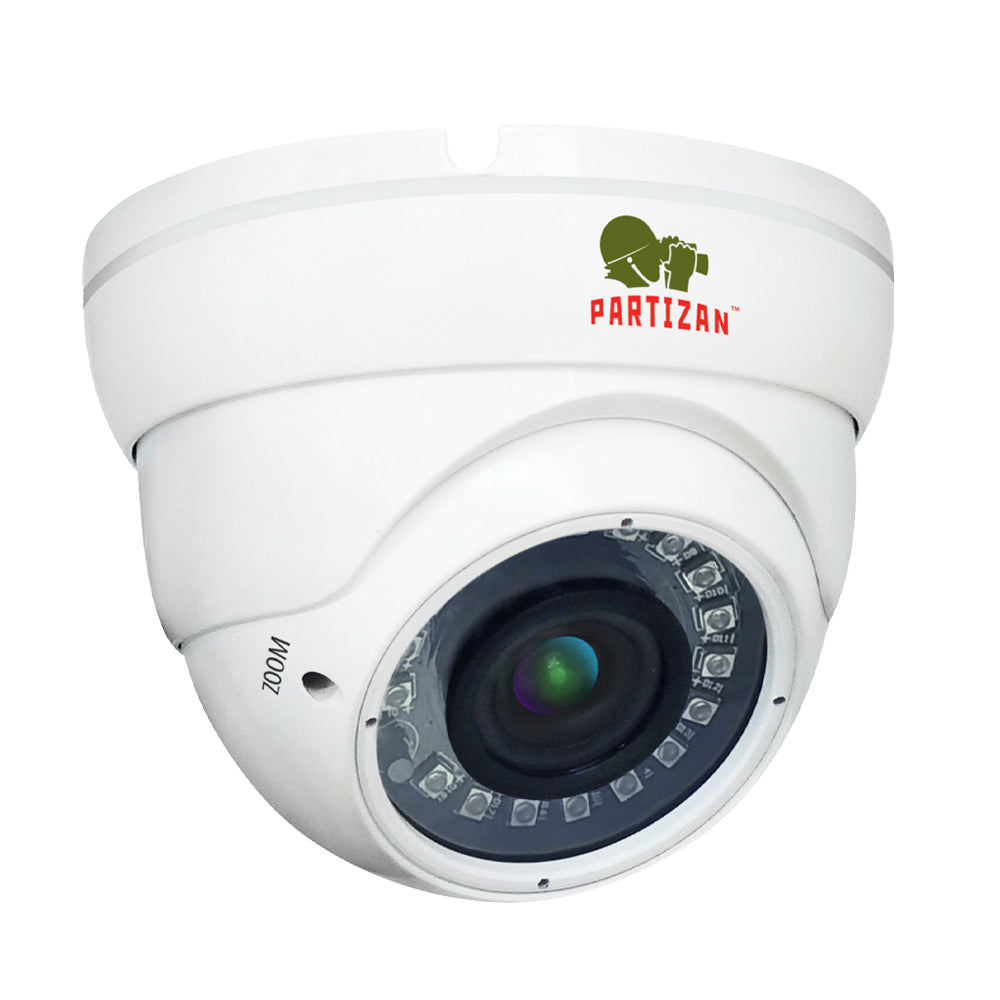

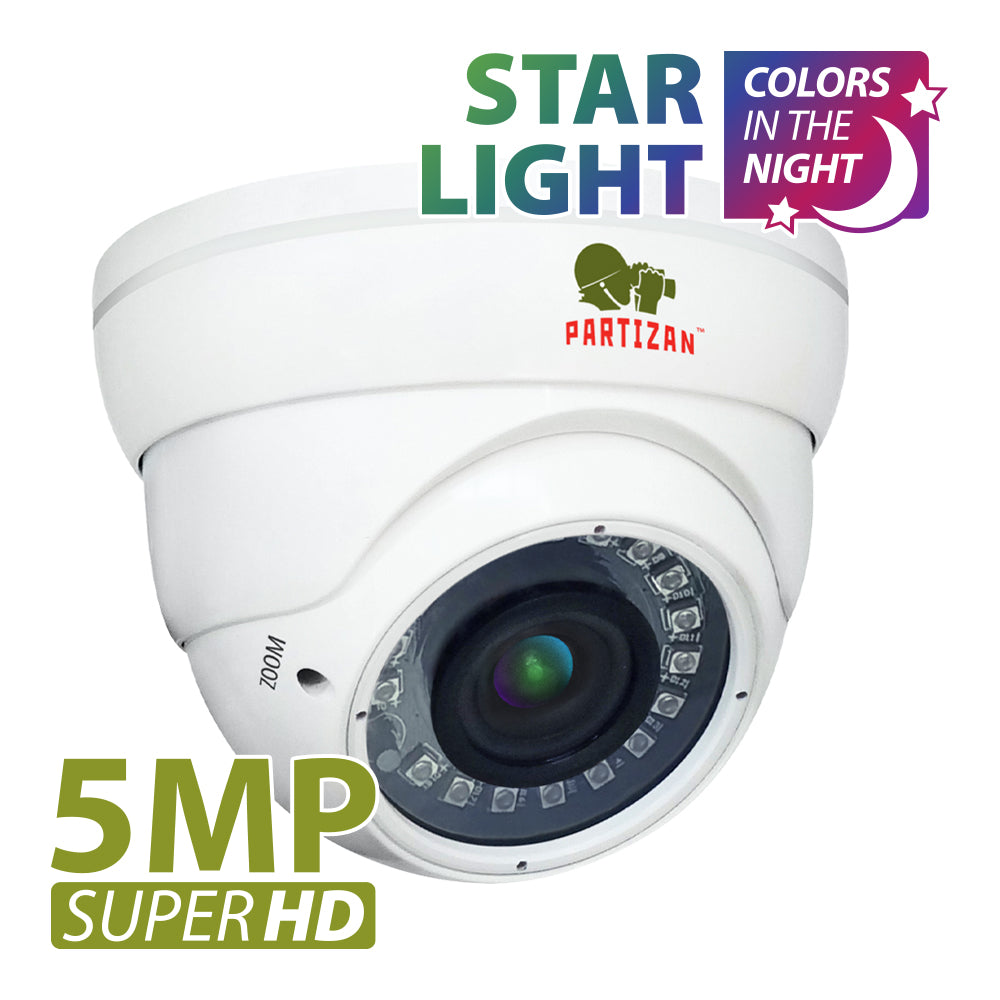

This is 5 megapixel SuperHD dome camera (2592x1944 pixels at 20 frames per second) with the adjustable focal length and 1/2.8" Sony Starlight matrix. The camera lens with the focal length 2.8-12 mm helps to adjust the angle of view.
The housing of the camera is made of metal and has IP66 degree of protection (complete dust and moisture protection) making it possible to install the camera in industrial unheated premises or even outdoors. The operating temperature range is from -40 to 60 °С.
Download CDM-VF37H-IR SuperHD Starlight 2.0 Datasheet
Main Features
Image sensor:
1/2.8" Sony Starlight
Resolution:
5Mp(2592x1944). Improved surveillance for the different spaces, faces and car number plates are clearly recognizable
Lens:
Manually-adjustable, f=2.8-12mm. Adjustable wide angle
Night vision:
Up to 30 meters
Size:
Ø120x93 mm
Weight:
600 g
Power supply:
DC12V, 0.5А
Housing material:
Metal
Housing protection:
IP66. Complete dust and moisture protection. For outdoor or industrial use
Operating temperature:
-40 - 60 °C
Additional advantages:
— Multi-mode options AHD/TVI/CVI/CVBS. You can switch that camera to any analog HD format, camera is compatible with the third party recorders
— 5Mp resolution
— High sensitivity
— Varifocal lens. Manual adjustment angle of view and sharpness
— SMD IR LED up to 30m
— OSD menu
— 3 years warranty
