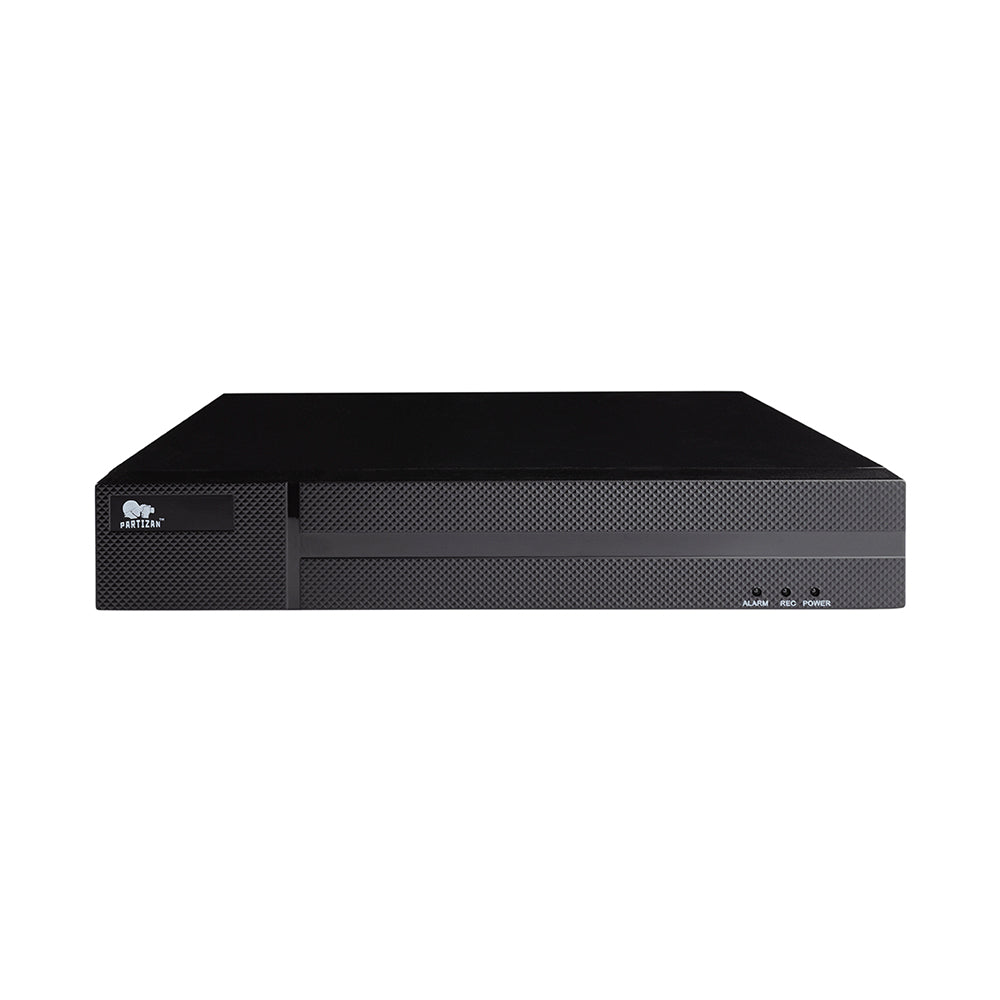

5Mp 16channels AHD recorder ADM-816V SuperHD v5.1

You can connect up to 16 cameras with 5.0M-N resolution to this hybrid AHD-DVR. In the IP mode - up to 16 IP cameras with 2Mp resolution. In the hybrid mode – up to 16 AHD cameras with 5.0M-N resolution and up to 4 IP cameras with 2Mp resolution. All the video surveillance channels are recorded simultaneously by the device in real-time mode. Four recording modes - fulltime, alarm, motion or schedule - provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time. The backup to USB storage devices is allowed. The standard (H.264/ H265) compression codec allows you to receive the small size video files without any quality loss. You can also connect a hard disk up to 8Tb (not included) to this DVR. The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s. This model is equipped with the 2 audio inputs and 1 output for recording and sound playback.

Download ADM-816V SuperHD 5.1 Datasheet Download DVR Manual Download Software
