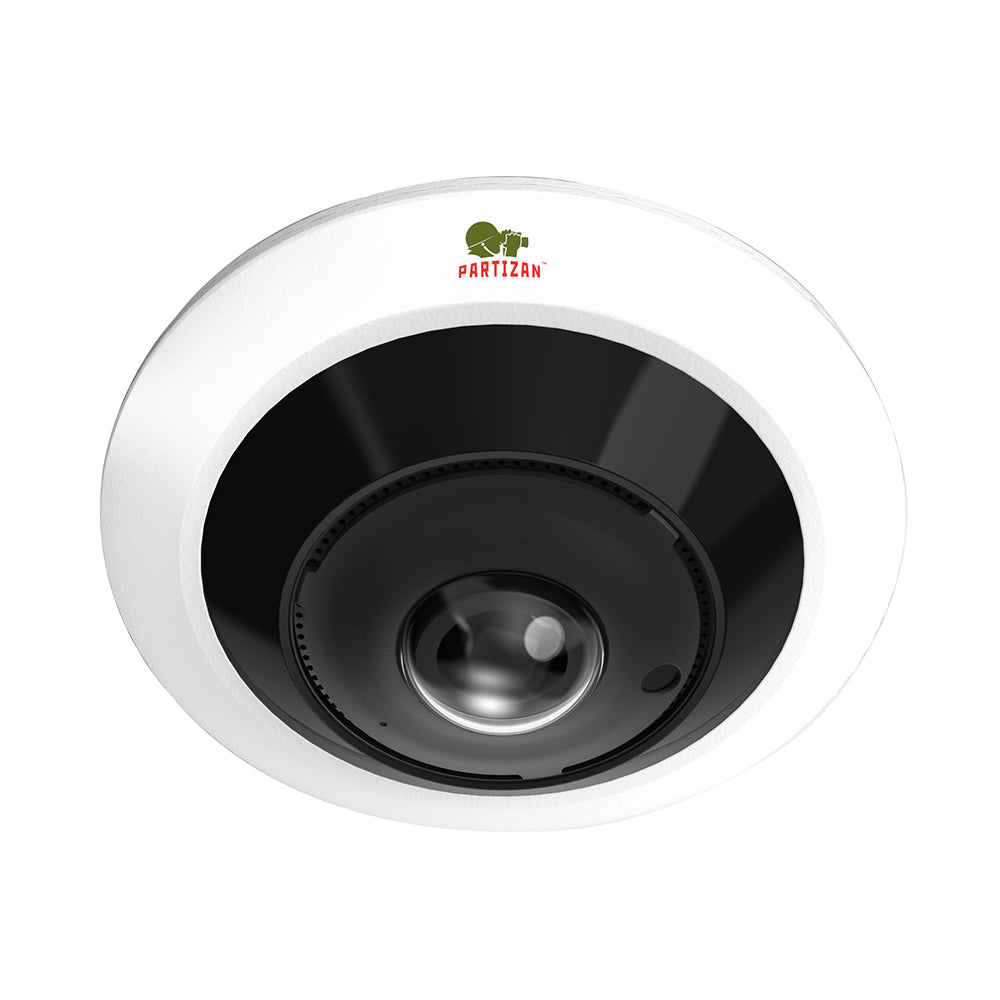

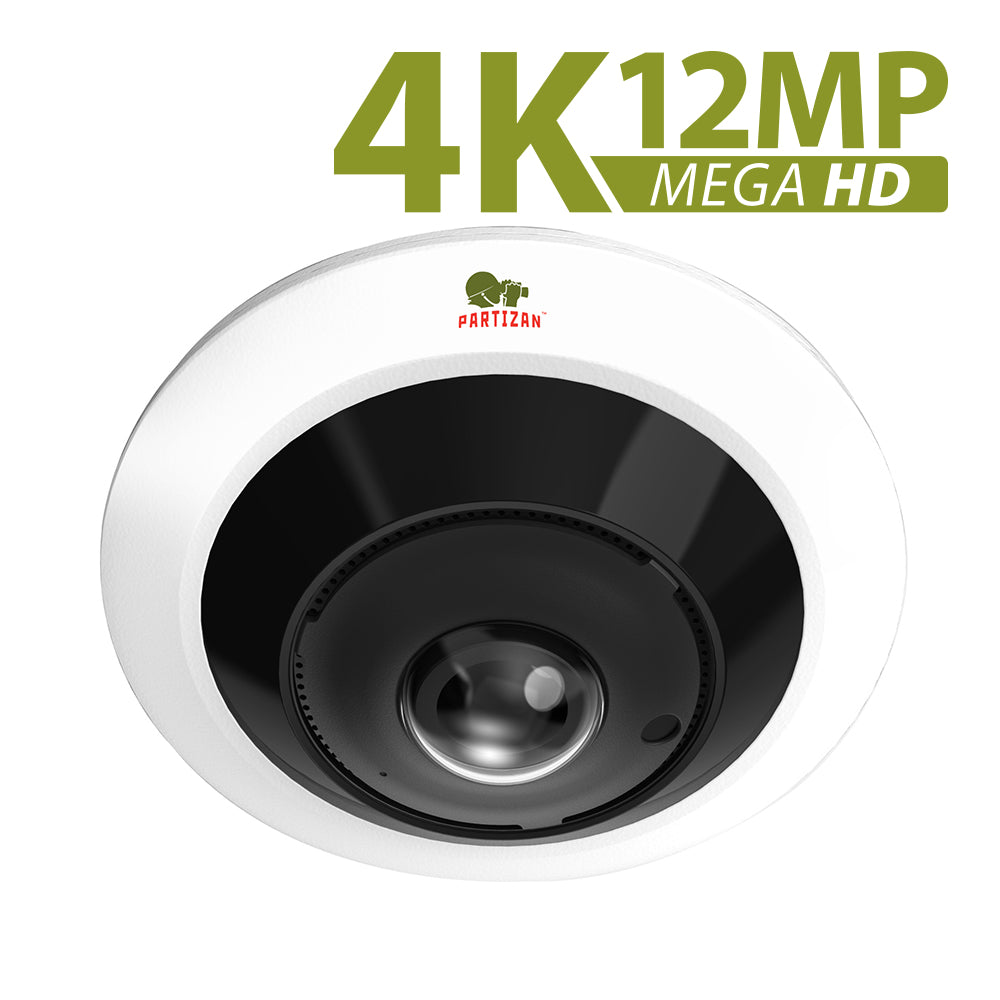

This panoramic camera with 360° angle of view can replace up to four cameras with a fixed lens. This model makes possible the receiving of a maximum wide image with minimum blind zones. High resolution of 12Mp (4K) provides a high-tech 1/2.3" Progressive CMOS matrix produced by world famous manufacturer.
This model is equipped with the built-in microphone for sound recording. The advantages of this model include a support of micro SD memory card for recording video to a local archive, without a DVR. POE support allows you to organize signal and power transmission over a single twisted-pair cable.
Download IPF-5SP 4K 1.0 Datasheet
Download software
Main Features
Image sensor:
1/2.3" Progressive CMOS
Resolution:
12Mp (4K 4000×3000). Very high picture quality, small items and banknotes are clearly recognizable
Lens:
Fixed focus, f=1.6 mm.
Night vision:
Up to 5 meters
Size:
Ø120x55 mm
Weight:
400 g
Power supply:

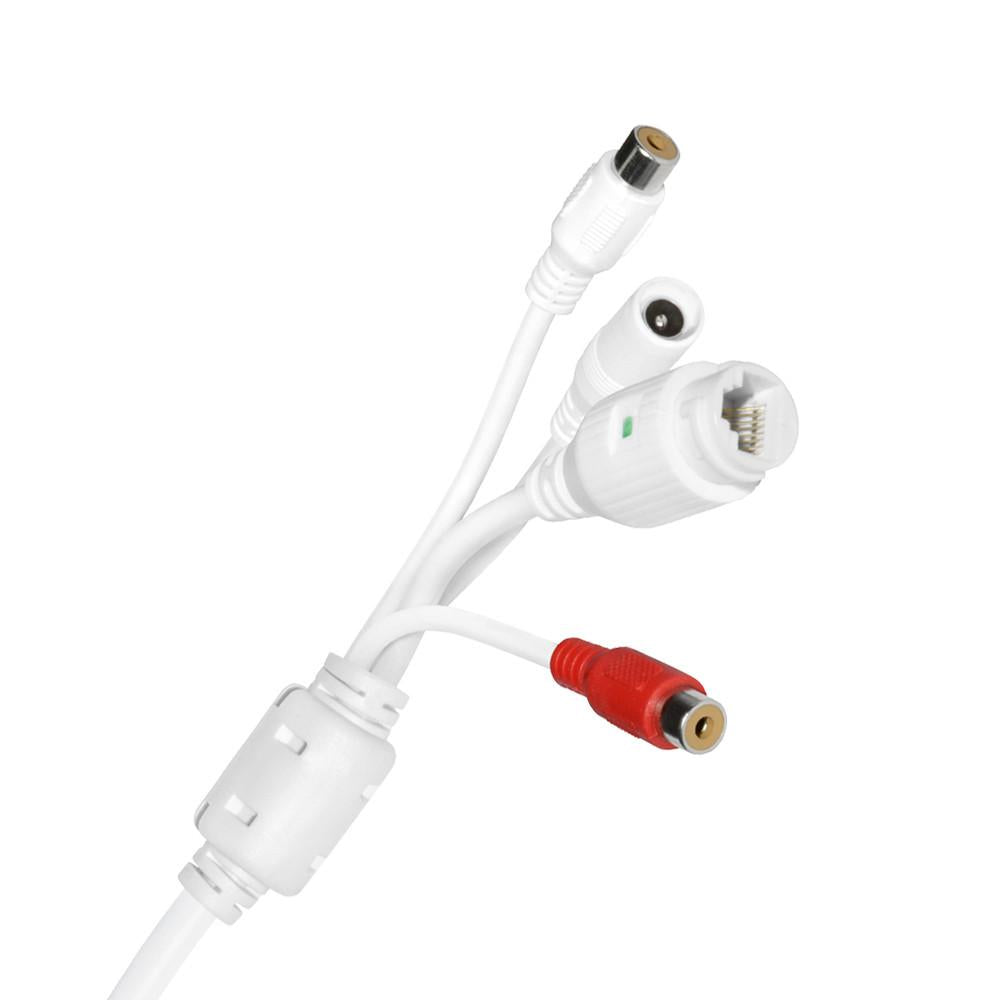

POE (single-cable transmission of video signal and power supply) or DC 12V, 0.6A
Housing material:
Metal
Housing protection:
IP66. Complete dust and moisture protection. For outdoor or industrial use
Operating temperature:
-40 - 60 °C
Additional advantages:
— Panoramic view
— Built-in microphone
— Alarm input/output
— Supports microSD-card recording. Camera can store video to microSD-card (not included) without external recorder
— ONVIF 2.6
— Partizan mobile app support
— 3 years warranty
